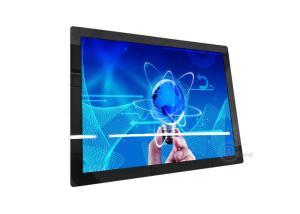

48W 15" 400 Nits 1024x768 RGB LCD Capacitive Touch Monitor

Product Categories
AXNEW DISPLAY TECHNOLOGY CO.,LTD
Contact Now

48W 15" 400 Nits 1024x768 RGB LCD Capacitive Touch Monitor

  • 1
  • 2

Brand Name : AXNEW

Model Number : AXD-15OPN1P3-V2C (VGA/HDMI/ DVI)

Certification : CE FCC ROHS

Place of Origin : China

MOQ : 10 pieces

Price : US$200-250/pcs

Payment Terms : T/T, Western Union, L/C

Supply Ability : 2000pcs/month

Delivery Time : 5-8 working days

Packaging Details : 5 pcs/carton

Resolution : 1024x768

Brightness : 400nits

Wide viewing angle : 80/80/75/75 ( 160/150)

Operating Temp. : -20-70 degrees

LED backlight : 50,000 hours (min)

Touch controller : EETI industrial touch board for windows free driver

Mounting way : Vesa mounting

Contact Now

15 Inch 400 Nits High Bright RGB Open Frame LCD Capacitive Touch Screen Monitor

Display Specifications
Display 15" High Bright Capacitive touch Monitor
Model Name AXD-15OPN1P3-V2C
Active Display Area (mm) 305.7(H)x229.7(V)
Pixel Pitch (mm) 0.297(H)x0.297(V)
Resolution (Pixel) VGA (1024x768)6 bit + FRC
Brightness (CD/m^2) 400nits
Contrast Ratio 600:1
Viewing Angle (CR >=10) 160/150
Power consumption 10.6 W typical, normal operation
Touch Screen Pro-Capacitive touch panel( USB Controller)
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,DVI-D(Optional)
Power Input DC 12V,4A 48W
Mechanical Specifications
Construction Steel housing & black Color, anti-vandal
Dimensions 339.5x 264.0x42.5(mm)
Mounting Embedded ,up and down; left-right fixing holes, vesa75x75;100x100 Wall Mounting Optional
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -20~70℃
Storage Temperature -30~80℃
Rating Facilitate installation of the demolition,solid portfolio
Privacy film Optional :Right Side 30+/-5 Degree;Left Side 30+/-5 Degree
Ordering Information 15” LCD High Bright RGB Open Frame LCD



Features and Advantages
1. New and Industrial A grade perfect panels , with super viewing angle, high brightness up to 400nits.
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces for Capacitive Touch Screen Monitor

6. Projection capacitive touch with anti-vandal glass, could be eeti chipset witout any interference.
7. 15 inch open frame capacitive touch is new and popular touch technology for financial industry ,banking , Automatic equipments etc
