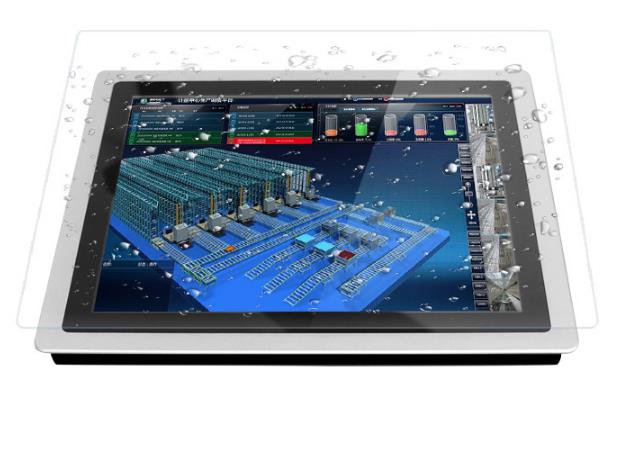

Atom N2800 Multi Touch Panel PC Wide Temperature with Anti-vandal water-proof

Product Categories

AXNEW DISPLAY TECHNOLOGY CO.,LTD

Contact Now

Atom N2800 Multi Touch Panel PC Wide Temperature with Anti-vandal water-proof

Name: Atom N2800 Multi Touch Panel PC Wide Temperature with Antivandal waterproof
Brand: AXNEW
Price: 400 USD

Wholesale Atom N2800 Multi Touch Panel PC Wide Temperature with Anti-vandal water-proof from china suppliers

Brand Name : AXNEW

Model Number : AXD-15PPC-A2 C

Certification : CE/FCC/ROHS/UL/CCC

Place of Origin : Shenzhen China

MOQ : 20 Pieces

Price : US$400-700/pcs

Payment Terms : Depends on product and order quantity

Supply Ability : 1000 pieces/month

Delivery Time : 10-15 working days

Packaging Details : 5 Pcs /Carton with firm foam

Name : 15.0 inch Multi Touch Panel PC

CPU : ATOM N2800 1.86GHZ

Contrast Ratio : 700:1

Brightness : 400cd/m^2

Input signal : VGA/DVI

Viewing Angles : 160(H)/140(V)

Application : Advertising|industrial|Kiosk|POS

Contact Now

15" Wide Temperature Atom N2800 Multi Touch Panel PC with Anti-vandal water-proof Function

Features and Advantages

1. Fanless Design; Ultra Slim and Compact Mechanical Design
2. High Luminance LCD Panel
3. Intel® Atom™ N2800 1.86GHz Processor
4. 15 " 1024 x 768 Resolution Color TFT LCD Display
5. Fully IP65 Waterproof on the surface
6. Supports Wide Range DC Power Input (12V)

Specifications datasheet

Panel PC information
Model Number	AXD-15PPC-A2 C
Model Number	15.0’’ Multi Touch panel pc
Case/Bezel Color	Black/Silver
TFT Type	Industrial LCD with LED backlight
Aspect ratio	4:3
Touch Panel	Industrial Capacitive Flat Screen
Touch response time	8ms (typical)
Optimal (native) Resolution	1024x768
LCD panel Pixel pitch	0.264 x 0.264 mm
LCD panel Colors	16.7 million
LCD panel Brightness	400 cd/m2
LCD panel Response Time	8ms
Contrast Ratio	700:1
Viewing Angle ( Wide )
Horizontal (left/right)	±80° or 160° total
Vertical (up/down)	80°(up), 80°(down) or 160° total
CPU	Soldered onboard Intel® Atom™N2800 1.86GHz Processor; DDR3 800MHz SDRAM ; Chipset: Intel® D2550 + ICH10M
storage	16G SSD up to 64 G
Serial Ports	4 x COM ports (1x RS-232/422/485 by-pin connector)
USB Ports	2 x USB external ports ; 6 six USB internal ports
LAN	2 x LAN RJ-45 connector
Net	1 x Realtek RTL8111C Gigabit Ethernet controller
DC Power In	1 x 4-pin connector
Video Port	1 x Video Output
Watch Dog Timer	1~255 levels reset
Internal Sockets & Connectors	1 x Compact Flash socket (reserved for OEM project)
Power Specification	DC 12V
Working Environment
Temperature	Operating: -10°C to 60°C ;Storage -20°C to 75°C
Operating Humidity	5 ~ 90% RH @40°C (non-condensing
Vibration	5 ~ 500Hz, 3Grms Random (with CF/SSD)
Shock	Operating 16G, 11ms & Non-operating 4G, 20ms (with
Dimensions
Mounting Type	Embedded Installation
Mechanical dimensions	376 x 303.5 x 52.7 mm
Weight (Net)	5.5 kgs/ piece
Drawings	Please contact us for details

Packaging & Delivery

Packing details

1x 15.0 inch Industrial Touch Panel PC ;

Packed in1 piece/carton with protection foam

Optional accessories:1x Power supply cable, 1x power

adapter

Delivery terms

7- working days for stock products after receiving payments; 15 working days for order production

Atom N2800 Multi Touch Panel PC Wide Temperature with Anti-vandal water-proof

Product Tags:

open frame lcd display

multi touch screen pc

Atom N2800 Multi Touch Panel PC Wide Temperature with Anti-vandal water-proof Images
