Full HD 24 inch 10 Point Multi Touch Screen Capacitive USB monitor 178 viewing

Product Categories

AXNEW DISPLAY TECHNOLOGY CO.,LTD

Contact Now

Name: Full HD 24 inch 10 Point Multi Touch Screen Capacitive USB monitor 178 viewing
Brand: axnew
Price: 100 USD

Brand Name : axnew

Model Number : AXD-24OPN1P2-T2P

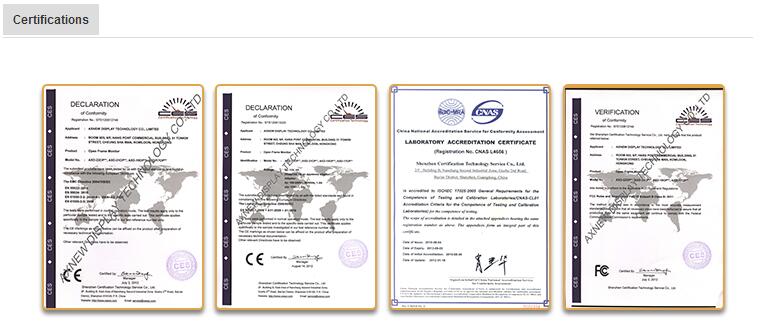

Certification : CE,Rohs

Place of Origin : China

MOQ : 5 units

Price : US$100~300/Unit

Packaging Details : 2 units/carton

Size : 24 inch

Signal inputs : HDMI, VGA, AV

Touch Points : 10 points

Touch Type : Pro capacitive touch

Resolution : 1920x1080 Full hd

Mounting ways : Portrait and landascape could be supported

Feature : High contrast; Super viewing angles

Contact Now

Full HD 24 inch Multi-touch LCD Screen Display 10 points Capacitive USB monitor 178 viewing

Display Specifications
Display	24" pro-capacitive Multi-touchscreen monitor
Model Name	AXD-24OPN1P1-VUC
Active Display Area (mm)	531.36 (H) x 298.89 (V)
Pixel Pitch (mm)	0.2767(H) x 0.2767 (V)
Resolution (Pixel)	1920X1080
Brightness (CD/m^2)	300cd/m^2
Contrast Ratio	3000:1
Viewing Angle (CR >=10)	178/178
Power consumption	28W typical, normal operation
Touch Screen	pro-apacitive USB
Surface Hardness	6H
Durability	60million touches (min)
Touch construction	G+G (3mm) thickness

OSD Control	On the back side
I/O Connectors	1x12v,1XVGA,1xHDMI,1XAV
Power Input	AC 100~240V,Universal,±10% ; AC/DC 12V4A
Mechanical Specifications
Construction	Roasted Metal Frame
Dimensions	572.7x 353.7x 38.7(mm)
Mounting	backside fixing holes ,VESA 75x75(100x100)
Power source	AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature	0~50℃
Storage Temperature	-20~60℃
Rating	Facilitate installation of the demolition, solid portfolio
Ordering Information	AXD-24OPN1P1-VUC 24''pro- capacitive touch monitor hdmi

Packaging & Delivery

Packing details

1x 24 inch capacitive touch monitor

Packed in 2 pieces/carton with protection foam

Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter

Delivery terms

7working days for stock products after receiving payments; 15 working days for order production
